Silicone Sealing Strips for Constant Temperature Box | OEM Supplier

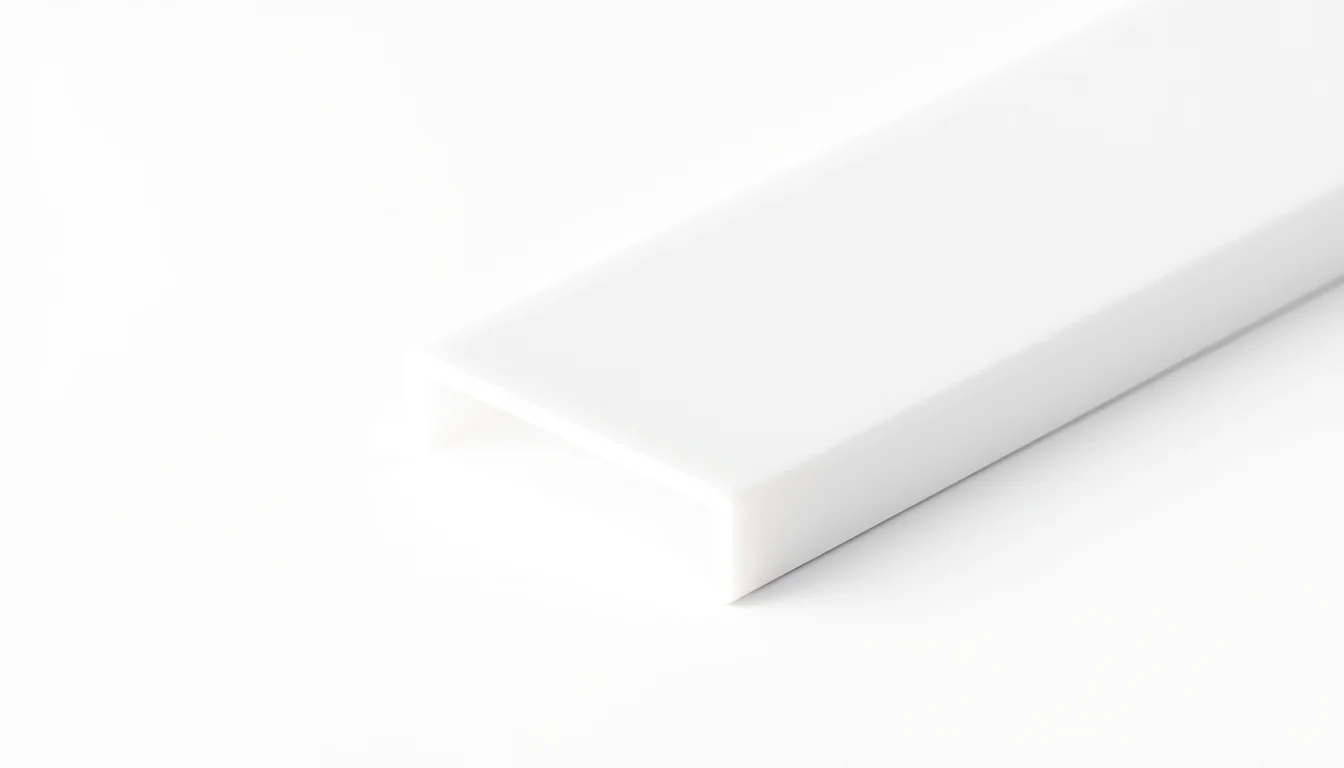

Silicone sealing accessories for constant temperature boxes are more durable because their elastomer backbone resists thermal aging, compression set, and ozone far better than EPDM, NBR, or neoprene in the 60–250°C cycling range typical of incubators and lab ovens. If you are an OEM or wholesale buyer placing active POs, this guide covers the factory capability comparison, custom extrusion process, tooling cost, MOQ, sample lead time, and export packing you need to source durable silicone gaskets without back-and-forth.

Why Silicone Outperforms Other Elastomers in Constant-Temperature Chambers

Silicone's polymer matrix is built on Si–O bonds, which have a much higher dissociation energy than the C–C backbone in EPDM or NBR. That translates directly into longer service life under continuous thermal load.

Material	Temp Range	Compression Set (22h @ 175°C)	Tensile Strength	Ozone Resistance	Typical Constant-Temp Use
VMQ Silicone	-60 to 230°C	15–25%	6–9 MPa	Excellent	Incubators, ovens, sterilizers
EPDM	-40 to 150°C	20–30%	10–15 MPa	Excellent	Ambient cabinets only
NBR	-30 to 120°C	25–35%	10–15 MPa	Poor	Oil-exposed, low-temp
Neoprene	-40 to 120°C	25–35%	10–15 MPa	Good	Legacy equipment

Key numbers for specifiers: a 50 Shore A silicone gasket tested to ASTM D395 Method B at 175°C for 22 hours typically returns 15–25% compression set. After 1,000 hours of ASTM D573 thermal aging at 200°C, tensile strength retention stays above 70%. That is why medical incubator OEMs standardize on silicone rather than EPDM for door and chamber seals.

Durometer and Compression Set Trade-offs

Lower durometer (40–50 Shore A) gives better sealing at low clamp force, which matters for glass-door incubators. Higher durometer (60–70 Shore A) resists extrusion and tear in sliding tray seals. Compression set is the number that predicts field failure — insist on a supplier who reports it per ASTM D395, not a marketing claim.

Flame Retardancy and Cleanroom Compliance

For medical incubators, specify UL 94 V-0 rated silicone where the chamber is enclosed. Standard VMQ is UL 94 HB; V-0 grades use platinum-cure systems with ceramic fillers. Confirm the grade before tooling, because V-0 compounds have different shrink rates and require separate extrusion dies.

Factory Capability Comparison: What to Verify Before You Place a PO

Not all silicone extrusion factories are equal. Use this checklist when auditing a potential supplier.

Capability	Basic Trader	Mid-Tier Factory	Advanced OEM Factory
In-house compounding	No	Partial	Yes
Extrusion lines	Outsourced	2–4	6–10
Tolerance capability	±0.5 mm	±0.3 mm	±0.15 mm
Vulcanization	Batch	Continuous	Continuous + post-cure
Tooling in-house	No	Partial	Yes
ASTM D573 / D395 testing	No	Outsourced	In-house lab

Ask for the extrusion tolerance in writing. Standard silicone profile extrusion holds ±0.3 mm on cross-section; precision lines hold ±0.15 mm. For constant-temperature box gaskets where the seal sits in a machined groove, ±0.2 mm is usually the practical floor without driving cost up.

Tooling Cost and Lead Time

A single-cavity silicone extrusion die for a typical chamber gasket profile runs USD 350–900 depending on complexity. Tooling lead time is 7–12 working days. If your profile has a hollow chamber or co-extruded hard/soft sections, add 3–5 days and 20–30% to tooling cost.

MOQ Reality

Silicone extrusion MOQ is driven by compound batch size, not by the die. Typical MOQ is 500–1,000 meters per profile per color. For custom silicone gaskets cut to length, MOQ is often 2,000–5,000 pieces. If you need a small trial batch, expect a surcharge of 15–25%.

In our Hunan factory experience, a German incubator OEM sent a 2D PDF with no cross-section dimensions and no material callout. We quoted three times before they sent a proper CAD file. Once the DXF arrived with a 6.5 mm × 9 mm hollow profile, 50 Shore A, ±0.2 mm tolerance, and UL 94 V-0 requirement, tooling was cut in 9 days and first-article samples shipped in 14. The lesson: one correct drawing saves two weeks of email.

How to Send CAD Drawings That Eliminate Back-and-Forth

A clean drawing package gets you an accurate quote in 24 hours instead of two weeks. Include these items.

File Format

DXF or DWG is preferred. STEP or IGES works for 3D profiles. PDF is acceptable only if fully dimensioned and to scale. Do not send a photo of a printed drawing.

Required Dimensions

• Cross-section profile with all radii, wall thickness, and hollow chamber dimensions
• Overall length or cut length with tolerance
• Corner radius if the gasket is a closed loop
• Groove dimensions the seal will sit in

Material Callout

State the base polymer (VMQ, FVMQ, platinum-cure silicone), durometer (Shore A), color, and any compliance requirement (UL 94, ISO 1817 fluid resistance, FDA, USP Class VI). If you do not know the durometer, tell us the clamp force and groove width — we will recommend it.

Tolerance and Surface Finish

Call out extrusion tolerance per ISO 3302-1 Class E2 or E3. Specify if the sealing surface needs a smooth finish or a textured grip. For door sealing strips on chamber doors, a smooth sealing face plus a textured back is common.

Quantity and Packaging

State annual volume, first-order quantity, and whether you need cut lengths, spliced loops, or continuous coils. This drives the packing method and freight cost.

Custom Silicone Extrusion Process: Step by Step

Understanding the process helps you set realistic lead times.

1. Drawing review and DFM feedback — 1–2 days. We flag thin walls, undercuts, and tolerance conflicts.
2. Compound selection — 1–3 days. Standard VMQ or custom formulation for thermal aging or flame retardancy.
3. Die design and machining — 5–10 days depending on profile complexity.
4. Trial extrusion and vulcanization — 1–2 days. Continuous vulcanization line with post-cure for compression set control.
5. First-article inspection — 1–2 days. Cross-section measured on optical comparator; hardness per ASTM D2240; compression set per ASTM D395.
6. Sample shipment — 3–5 days by express.
7. Production run — 10–15 days after sample approval.

Vulcanization and Post-Cure

Platinum-cure silicone requires a post-cure cycle (typically 4 hours at 200°C) to drive off volatiles and stabilize compression set. Skipping post-cure is the most common cause of field failure in cheap silicone gaskets. Ask your supplier to confirm post-cure in the process sheet.

Extrusion Tolerance Control

In-line laser measurement keeps cross-section within ±0.15 mm on precision lines. For silicone series profiles used in medical incubators, we run 100% dimensional check on first and last 10 meters of each production lot.

Packing, Export, and Documentation for Overseas Buyers

Silicone gaskets are flexible and lightweight, so packing is about preventing deformation and contamination, not weight.

Packing Method	Best For	Protection Level
Poly bag + carton	Cut lengths, small gaskets	Basic
Coil on cardboard core	Continuous extrusion	Good — prevents kinking
Vacuum bag + carton	Medical/cleanroom	High — dust and moisture barrier
Custom blister tray	OEM kitted sets	Highest — dimensional stability

Export documents: commercial invoice, packing list, HS code (typically 4016.93 for silicone gaskets), certificate of origin, and material test report. For medical incubator buyers, request a USP Class VI or ISO 10993 biocompatibility report if the seal contacts patient-adjacent air.

Related Sealing Accessories for Constant-Temperature Equipment

Beyond chamber door gaskets, most OEMs also specify cabinet seals for control panels and WPC profiles for exterior trim on floor-standing units. Keeping these profiles with one supplier reduces tooling and freight overhead.

Frequently Asked Questions

What is the MOQ for custom silicone gaskets for constant temperature boxes?

Standard MOQ is 500–1,000 meters per profile for continuous extrusion, or 2,000–5,000 pieces for cut-to-length gaskets. Trial batches below MOQ carry a 15–25% surcharge. MOQ is driven by compound batch size, not by the die, so combining two profiles in one compound color can reduce your effective minimum.

What is the lead time for samples and production?

First-article samples ship 10–15 working days after drawing approval and tooling payment. Production runs ship 10–15 working days after sample approval. Express sample delivery is 3–5 days. If you need a faster sample, we can extrude from an existing die if your profile matches a stock cross-section.

What extrusion tolerance can you hold on silicone profiles?

Standard tolerance is ±0.3 mm on cross-section. Precision extrusion holds ±0.15 mm, and ±0.2 mm is the practical target for constant-temperature box gaskets without significant cost increase. Tolerance is specified per ISO 3302-1 Class E2 or E3. Always state the tolerance on your drawing — do not assume the supplier will default to precision.

How are silicone gaskets packed for export?

Continuous profiles ship coiled on cardboard cores inside cartons to prevent kinking. Cut-length gaskets ship in poly bags or vacuum bags for medical/cleanroom applications. Custom blister trays are available for OEM kitted sets. All cartons are export-grade with moisture barrier liners for sea freight.

What is your sample policy?

First-article samples are free for profiles under 500 mm; you pay freight only. For larger samples or multi-profile sets, we charge a nominal sample fee that is credited against your first production order. Tooling cost is quoted separately and remains your property. Send your CAD drawing for a 24-hour quote.
